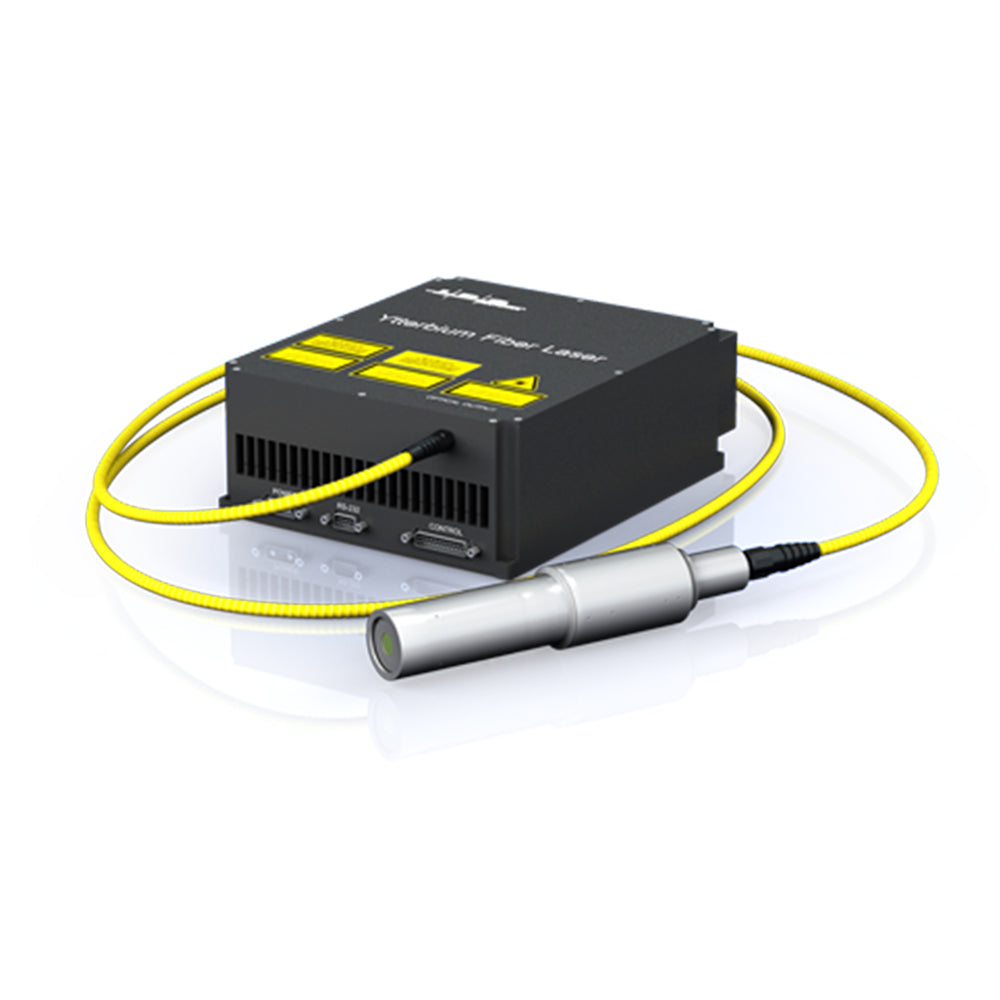

Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source
Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source

Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source

Vendor: Cloudray
SKU: FLS01I20
Please hurry! Only 0 left in stock
Power: 20W
$6,999.00
$6,999.00
Ask An Expert
Subtotal: $6,999.00
10 customers are viewing this product
Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source

Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source

$6,999.00
Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source
Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source

Cloudray 20W 30W 50W 100W IPG YLP Series Pulse Fiber Laser Source

$6,999.00
Power: 20W
Description
Description
x

Application Advantages

  • Micro cutting
  • Scribing
  • Trimming
  • Hole drilling
  • Ablation and cleaning
  • Coating removal
  • Precision marking
  • Texturing

Product Features

  • Pulse Duration* 100 ns
  • Pulse Energy up to 1 mJ
  • Average Power up to 100 W
  • Pulse Rep. Rates 2-500 kHz
  • Bitstream 1 Operating Mode
  • Excellent Pointing Stability

The YLP Q-switch fiber laser modules produce 1064 nm pulses with 100 ns duration and pulse energies up to 1 mJ at repetition rates from 2 to 500 kHz. The average output powers range from 10 to 100 Watt. Conductive bottom or forced air cooling packages are available. Other fixed pulse durations options are available upon request. Beatstream 1 mode ensures fast and accurate pulse control. The high-brightness 6-7 mm beams are optimized for marking and micromachining applications such as micro cutting and scribing, trimming, texturing and precision surface treatment.

These compact air-cooled, maintenance-free modules are designed for OEM applications. The robust all-fiber design packaged into a rugged case allows operation in harsh industrial environments. The all-fiber format allows for the adjustment of peak power and/or pulse repetition rate without affecting any of the output beam parameters. These fiber lasers are much more efficient and compact than conventional solid state pulsed lasers.

Fine processing of thin foils and coating as well as treatment of surfaces can be optimized using wide range of operating parameters. They are ideal for applications in micromachining, scribing, hole drilling, ablation, resistor trimming, photovoltaics, texturing and marking.

Laser Machine Specification

Brief Information:

  • Brand: IPG
  • Product Model:  YLP-V2-1-100
  • Laser Dimensions: 215*286*95 mm (20/30W)/  215*260*140mm (50/100W)
  • Fast Global Shipping: DHL / UPS
