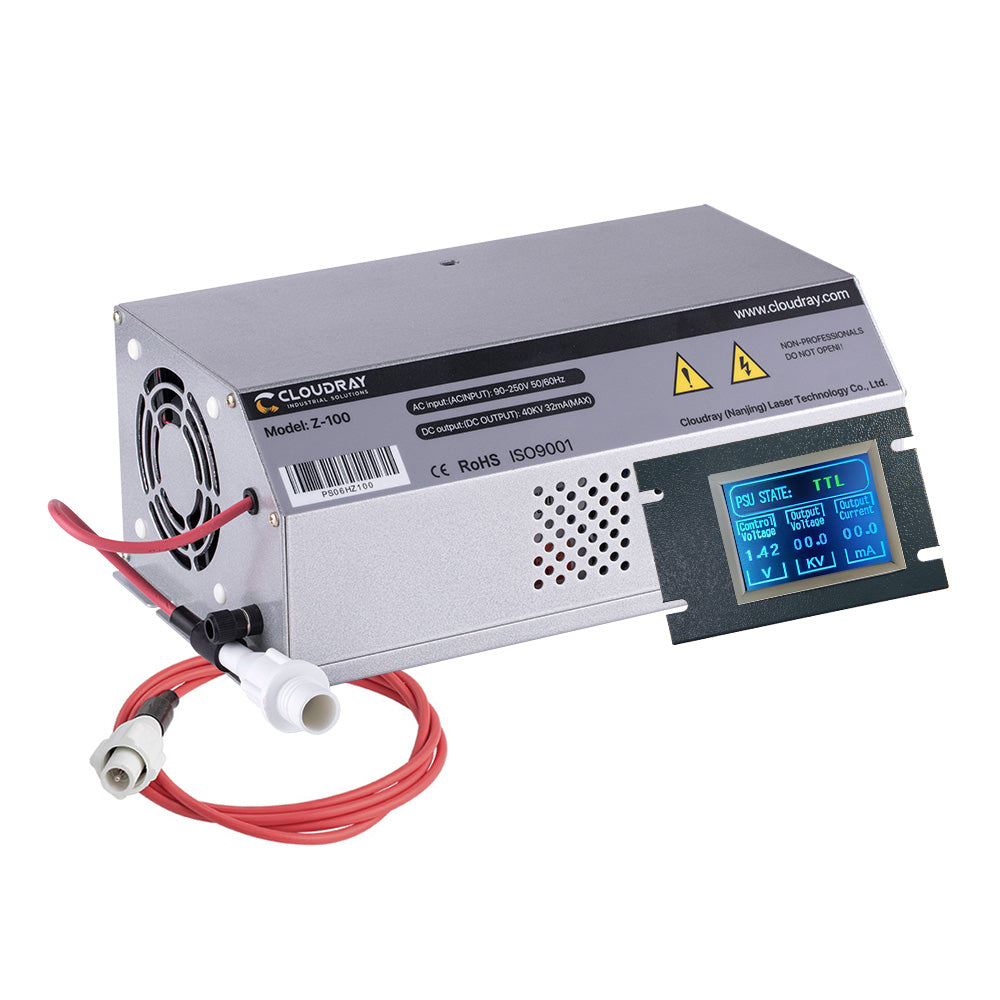

Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)

Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)

Vendor: Cloudray
SKU: PS06HZ100M
Please hurry! Only 0 left in stock
Size: Z100 With LCD
$187.00
$187.00
Ask An Expert
Subtotal: $187.00
10 customers are viewing this product
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)

Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)

$187.00
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)
Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)

Cloudray 100-120W AC90-250V HY-Z Series Z100 CO2 Power Supply（With/Without LCD)

$187.00
Size: Z100 With LCD
Description
Description
x

HY-Z Serise Power Supply is warranted for 12 months.

You could take a look at [WARRANTY AND RETURN](https://www.cloudraylaser.com/pages/warranty-and-return) for more warranty terms.

Laser Power Supply

HY-Z100

Product Features


High intelligence:
Built-in control, can communicate with motion controller,and it can communicate with max 32pcs power supplies by cascade connecting, thenthe controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.
Make the maintenance much easier:
User can judge the problem by himself.
Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.
Universal:
With PFC function, AC90-250V input voltage range, globally universal.
Open circuit protection:
When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.
More safety:
With high voltage discharge function, no residual voltage when turning off, safer for user.
Excellent cover with patent design:
Good appearance, better heat dissipation.
Improved current control mode, more stable laser, better compatibility.

Product Structure

Input voltage AC90-250V
AC frequency 47---440Hz
Max input power 700W
Max input current (when 90V input) 8A
Max output voltage 40KV
Max output current 32mA
Efficiency ≥90%(when full load)
MTBF ≥10000 hours
Response speed ≤1mS(the time from the signal is given to output current reaches 90% of set current)
Switch control mode
Switch control mode TTL
Power control mode PWM(>20KHz) or 0-5V or 0-3.3V analogue
Communication mode Special serial port
Withstand voltage Input-output, input-shell:AC1500V 10mA 60s
Working environment Temperature (-10~40) ℃, relative humidity:s90%
Cooling Force air cooling
Dimension(L*W*H) 278*144*104mm
Weight 2.45kg
Color Silver

Product Size

*LCD display can be purchased

1.If P5 terminals connect with Ruida RDC6442G Controller

If there is only one PSU need to connect with one control board(like RT6224G),Please connect P5 with RT6224G's RT-link. Just like the methed shows in picture behind.P5_A can be empty if there is only one PSU.

2.If P5 terminals connect with LCD

If there is only one PSU, connect P5_B terminals with the LCD directly.
If there are more than 2 PSU, connect P5_B terminals of the first PSU with LCD,connect P5_A terminals of the first PSU with P5_B terminals of the 2nd PSU.
Wires between terminals, it is recommend to use 4 wire in one,and the wire diameter must be more than 0.5mm.
NOTES:
P3 is a test button. If output current approach or above 50% of the rated current when the button is pressed.It indicates that the PSU is OK.
P2 is the terminal of AC input. 110V~ac or 220V~ac
P1 Do not operate this terminal.

P4 terminal definition

TH Input signal Laser on/off control, laser on when high level(≥3V),laser off when low level(≤0.3V)
TL Input signal Laser on/off control, laser on when high level(≥3V),laser off when low level(≤0.3V)
WP Input signal Laser on/off control, laser on when high level(≥3V),laser off when low level(≤0.3V)
G Signal ground This terminal must be connected with outer shell and control board of machine properly
IN Power signal Laser power control terminal, control with 0-5V analog signal or 5V PWM signal
5V Output 5V output, max output current is 20mA

1.Display when connecting Ruida controller

Area A:If falut occurs,this area will display the fault information
Area B:the button of the panel will display the conditions of the power supply,such as voltage current,etc

2.Display when connecting LCD
